Kwayoyin Hexagon tare da Flange

DONGSHAO yana gayyatar ku ku ziyarci masana'antarmu don siyan sabbin, mafi kyawun siyarwa, mai araha, da inganci Hexagon Kwayoyi tare da Flange. Muna fatan yin aiki tare da ku.

Aika tambaya

Bayanin Samfura

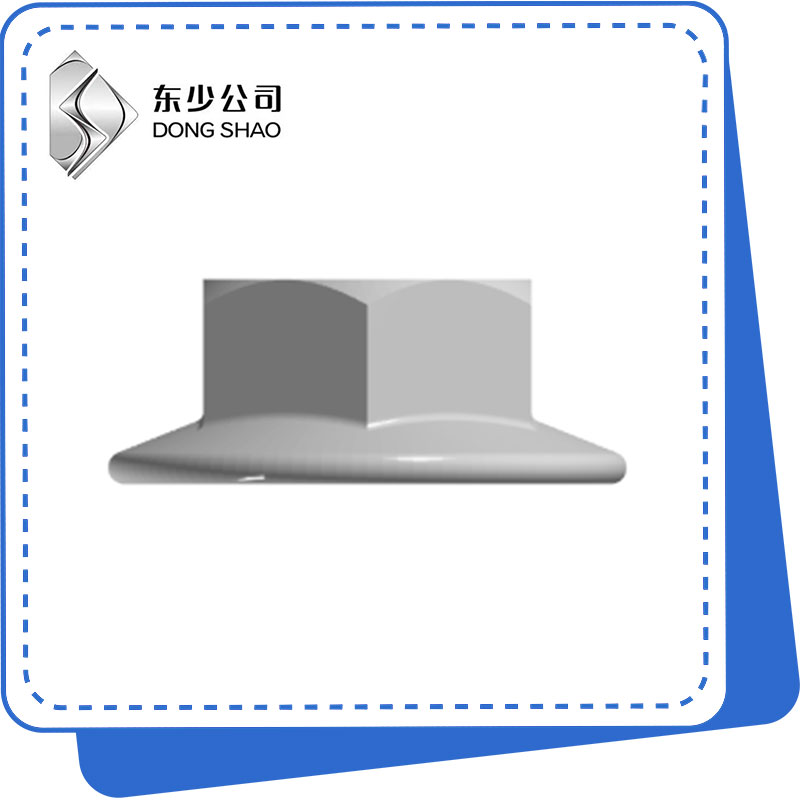

Hebei Dongshao Fastener Manufacturing Co., Ltd. sanannen mai siyarwa ne kuma mai kera na goro na Hexagon tare da flange a China.

The Hexagon kwayoyi tare da flange kerarre da kamfanin suna da abin dogara fastening karfi da sealing, wanda zai iya yadda ya kamata hana yayyo da sassautawa, da kuma iya daidaita da daban-daban aiki yanayi da kuma load bukatun. , jiragen ruwa, layin dogo, gadoji, gine-gine, gine-gine, kayan aiki, kayan aiki, mita da kayayyaki.

Sigar Samfura

(mm)	M3	M4	M5	M6	M8	M10	M12	M14	M16	M20
P	0.5	0.7	0.8	1	1\|1.25	1\|1.25\|1.5	1.25\|1.5\|1.75	1.5\|2	1.5\|2	1.5\|2\|2.5
da max	8	10	11.8	14.2	17.9	21.8	26	29.9	34.5	42.8
da min	6.01	7.66	8.79	11.05	14.38	16.64	20.03	23.36	26.75	32.95
ku max	3.5	4.5	5	6	8	10	12	14	16	20
ku min	3.2	4.2	4.7	5.7	7.6	9.6	11.6	13.3	15.3	18.9
s max	5.5	7	8	10	13	15	18	21	24	30
s min	5.32	6.78	7.78	9.78	12.73	14.73	17.73	20.67	23.67	29.67
